MOQ : 1
Payment Terms : L/C,T/T
Brand Name : Firepower
Model Number : MFOG910
Place of Origin : China
Supply Ability : 1000/month
Delivery Time : 1 WEEK
Packaging Details : carton with sponge
Bias Stability : ≤0.8°/h
Measuring Rsnge : ±240°/s
Power Supply : 5±0.15V
Scale Factor Asymmetry : ≤1000ppm
Communication Mode : RS422
Bandwidth : ≥1000Hz

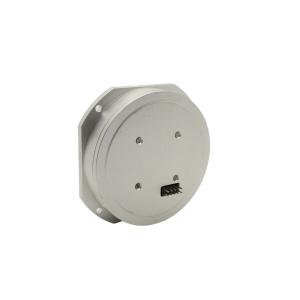

MFOG-910 Micro-Nano Fiber Optic Gyroscope is a high-precision angular rate sensor based on the Sagnac effect. It integrates optical, mechanical, and electronic technologies to measure angular velocity with exceptional accuracy.
Featuring a solid-state design with no moving or wearing parts, it ensures high reliability, compact size, low weight, and fast startup. Ideal for attitude control and navigation of UAVs, vehicles, ships, and aerospace platforms.
Composition
The product is mainly composed of the following components:
A) an optical path assembly,
B) Detection and control signal circuit board,
C) Optical fiber coil skeleton, shell and other structural parts,
Main Performance Parameters
Serial number | Project | Performance indicators |
1 | Range (°/s) | ±240 |
2 | Scale factor (mV/ o /s) | 47±5 |
3 | Scale factor nonlinearity (ppm) | ≤1000 |
4 | Zero-bias stability (10s, 1σ, o /H) | ≤0.8 |
5 | Zero-bias repeatability (1σ, o /H) | ≤0.8 |
6 | 3dB Bandwidth (Hz) | ≥1000 |
7 | Random walk ( o /√ H) | ≤0.02 |
8 | Power supply (V) | 5+0.25 +12 |
9 | Power Consumption (W) | ≤1.5 |
10 | Impact (g) | ≥1500 |
11 | Acceleration (g) | ≥70 |
12 | Life (years) (calculated assessment) | ≥15 |
13 | MTBF (Calculated Assessment) | ≥100000 |
overall dimension
![]() |
Advanced Silicon Photonic Chip Fiber Optic Gyroscope FOG with Fast Startup Images |
