Aerospace Grade Fiber Optic Gyroscope IMU for Flight Control

Name: Aerospace Grade Fiber Optic Gyroscope IMU for Flight Control
Brand: Firepower
Price: 1 USD

Wholesale Aerospace Grade Fiber Optic Gyroscope IMU for Flight Control from china suppliers

Brand Name : Firepower

Model Number : MFOG-103

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T,L/C

Supply Ability : 1000/monthAerospace Grade Fiber Optic Gyroscope for Flight Control

Delivery Time : 10 days for sample

Packaging Details : carton with sponge

Sensor Name : low bias gyro

Bias Repeatability : ≤1°/h

Zero-bias stability : ≤1°/h

Random Walk : ≤0.02°/√h(1σ)

Shock Resistance : 2000 g

Overall Dimensions : 60mm*60mm*17mm

Contact Now

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/ o /s)	6±0.6
3	Zero-bias stability (10s, 1σ, o /H)	≤1
4	Zero-bias repeatability (1σ, o /H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk ( o /√ H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

MFOG-103 Micro-Nano Fiber Optic Gyro is a precision angular rate sensor built on the Sagnac effect principle. It integrates optical, electronic, and structural components into a solid-state, maintenance-free design.
Featuring fast startup, compact size (60×60×17mm), and light weight (≤80g), it operates in -40℃~+70℃ environments and withstands up to 20g random vibration. Ideal for attitude control, navigation, and stabilization, it’s an excellent Fizoptika VG103 alternative for aerospace and industrial use.

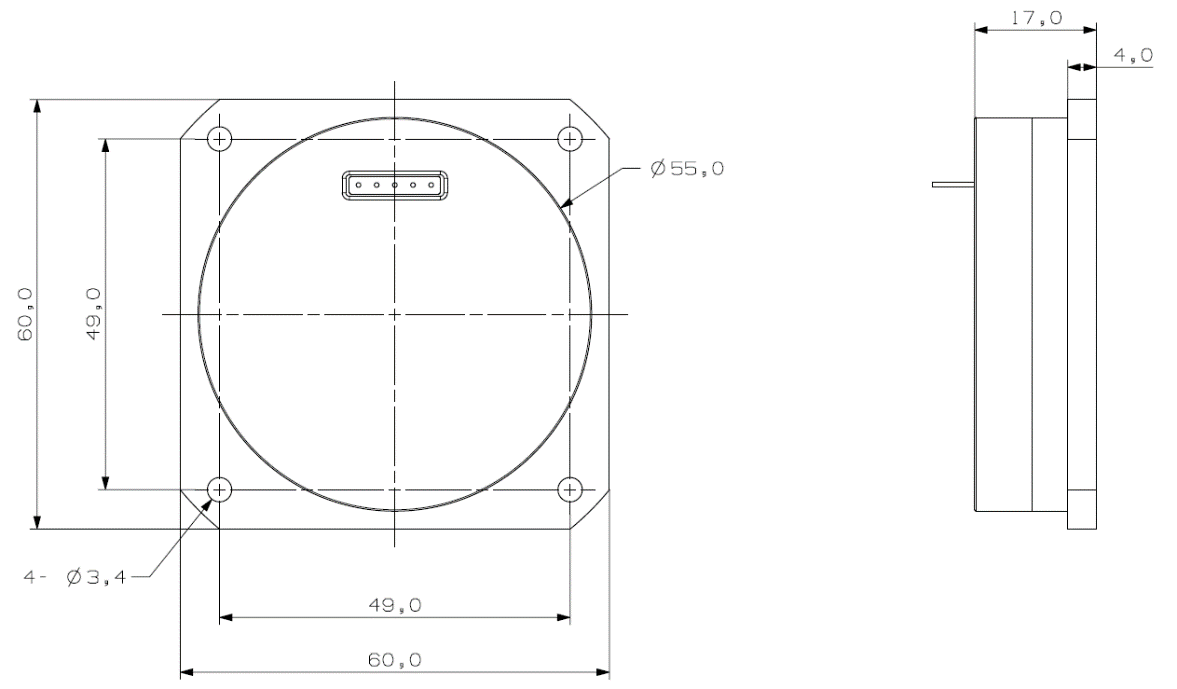

installation surface Aerospace Grade Fiber Optic Gyroscope IMU for Flight Control
